Product name
|

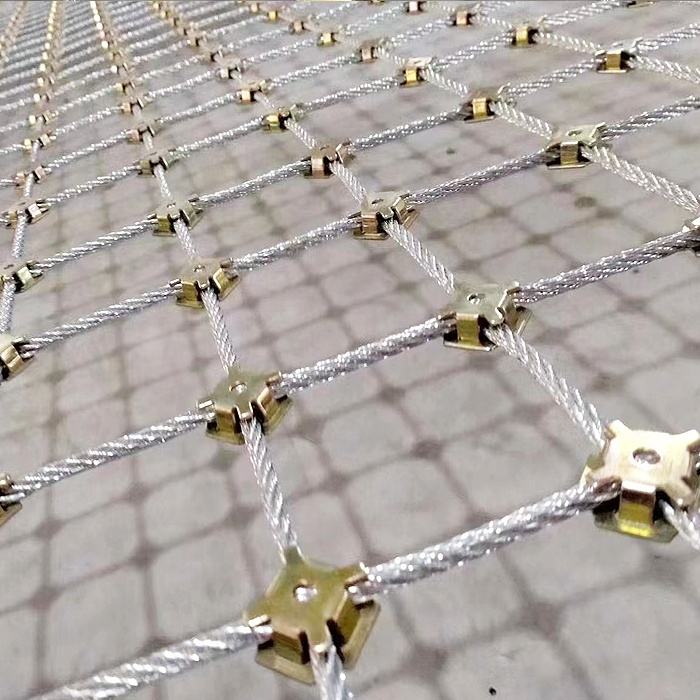

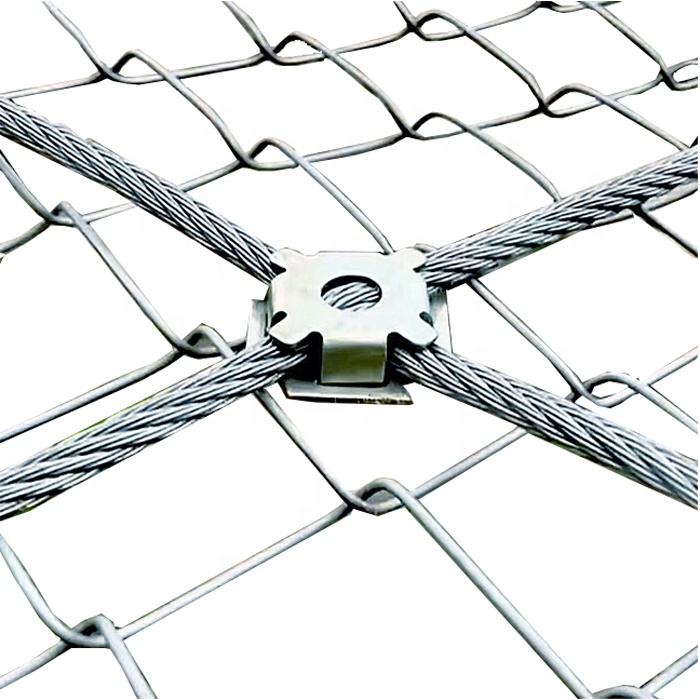

Slope protection net |
|
Wire diameter
|
8mm |
|
Size
|
4.5m*4.5m |
| Suture rope | Material and speication are as sthe same as the mesh wire |
|
Rope specification
|
Rope specification |
|
Zinc coating
|
>200g/m2 |
|
Mesh hole
|
300mm*300mm(GB) |
|
Tensile
|
Tensile |
|
Usage
|

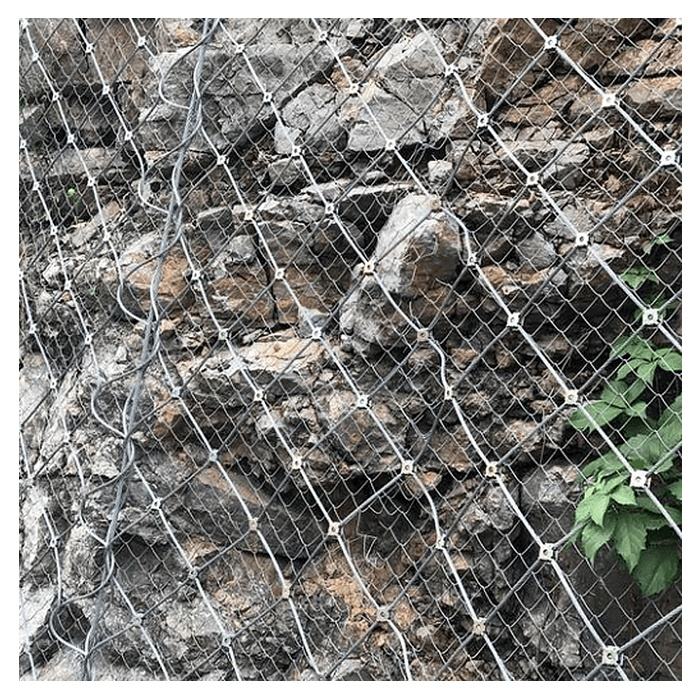

Rockfall barrier |
1. who are we?
We are manufacturer who specializes in producing slope protection netting. And we are the 3rd factory in China who passed the slope protection system testing experiment from CNAS.
2. what are our advantages?
1) thickness of fasteners: 2.52mm
2)anti-rubbing tensile of fasteners: 5.2 kN
3)anti-falling off tensile of fasteners: 10.2 kN
4)the rest anti-breaking off tensile of steel wire after rubbing: 42.69, 42.19, 39.67 kN
5) the maximum scratching value: 137, 132, 155mm
the destroying displacement: 666, 684, 860mm
central value: 180.6 kN
6) zinc coating of fasteners: 8μm
